What is Chalcopyrite? Chalcopyrite Crystals and Uses

What is chalcopyrite

Chalcopyrite is a mineral containing copper, iron and sulfur elements, with the chemical formula CuFeS₂, and is a sulfide mineral belonging to the tetragonal system. Chalcopyrite is one of the most important copper ores on earth and has important economic value.

How is chalcopyrite formed?

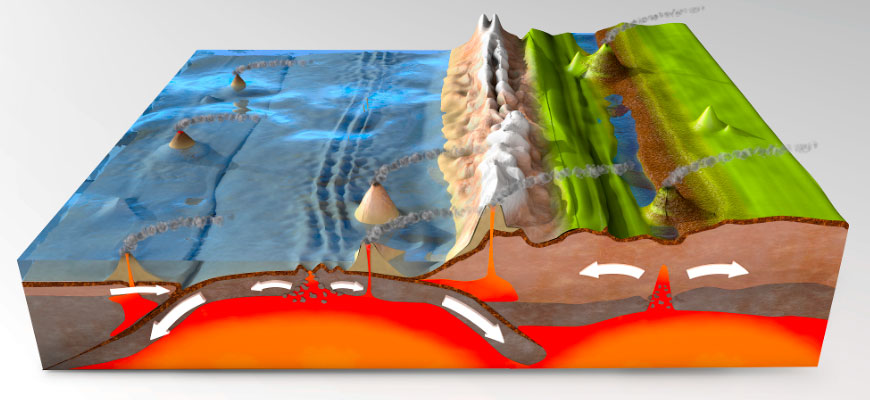

The formation of chalcopyrite is mainly related to geological processes, and is mainly formed by the following 4 processes:

Magmatic activity: When magma rich in copper, iron and sulfur cools, these elements combine to form chalcopyrite.

Hydrothermal action: When underground hot water solutions flow through rocks, they dissolve the metal elements and sulfur in them. Under specific physical and chemical conditions, chalcopyrite will precipitate.

Sedimentary action: Chalcopyrite can also be formed by sedimentary action. Near the seafloor hydrothermal vents, metal-rich hydrothermal fluids mix with seawater, resulting in the precipitation of sulfide minerals such as chalcopyrite.

Metamorphic action: Copper-containing minerals react chemically under high temperature and pressure conditions to form chalcopyrite.

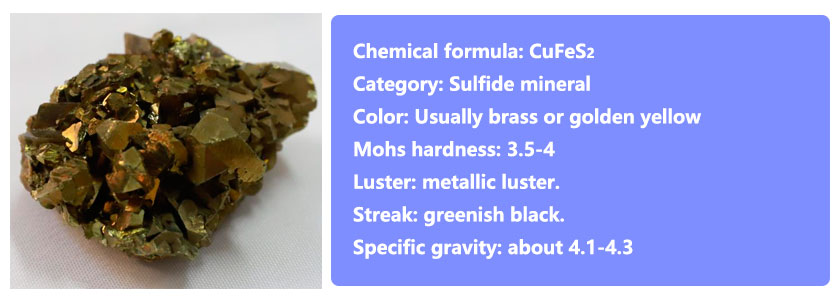

Basic properties of chalcopyrite

Chemical formula: CuFeS₂

Category: sulfide mineral

Color: usually brass or golden yellow, often with a rainbow-colored oxide film on the surface.

Hardness: Mohs hardness is 3.5-4

Luster: metallic luster.

Stripe: green-black.

Specific gravity: about 4.1-4.3, relatively heavy.

Chalcopyrite crystals

Chalcopyrite crystals are favored by mineral collectors and geologists for their unique morphology and beautiful metallic luster.

Crystal structure: Chalcopyrite crystals are often tetrahedral or octahedral crystals,

Crystal appearance: metallic luster, opaque, usually brass or golden yellow, and often with a rainbow-colored oxide film on the surface.

Crystal size: ranging from tiny particles to several centimeters, large crystals are collectible.

Is chalcopyrite a mineral or a rock?

Chalcopyrite is a mineral with a specific chemical composition and crystal structure. It is the basic unit that constitutes copper ore rocks, but it is not a rock itself.

What are the uses of chalcopyrite?

Copper smelting: Chalcopyrite contains about 34.5% copper and is one of the main raw materials for copper smelting. The extracted copper is widely used in electricity, construction, transportation, etc.

Byproducts: Chalcopyrite can also obtain valuable byproducts such as sulfur and iron during the smelting process.

Sulfuric acid production: Chalcopyrite can produce sulfur dioxide during smelting, which can be used to produce sulfuric acid and is an important raw material for fertilizer, pharmaceutical and other industries.

Collection and teaching: Chalcopyrite has a unique metallic luster and brass color, which is deeply loved by collectors. The crystal structure, chemical composition and rainbow color of chalcopyrite after oxidation are very valuable in geological research and teaching.

Craft decorations: Many modern crafts are made of chalcopyrite.

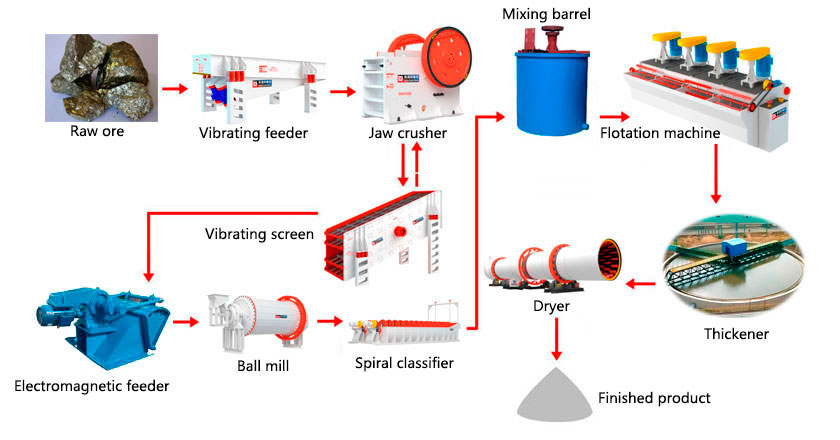

Chalcopyrite flotation process

Chalcopyrite is an important raw material for copper extraction. Concentrated copper ore is obtained mainly through the following 4 steps:

Crushing and grinding: Large pieces of ore are crushed into small particles by jaw crushers, cone crushers and other equipment. The crushed materials are sent to the ball mill for fine grinding.

Slurry adjustment: send the ore pulp after grinding into the slurry adjustment tank, add appropriate amount of water to adjust the concentration of the ore pulp, and then add flotation reagent.

Flotation: mainly consists of three steps, namely, selection, selection, and scavenging.

Dehydration: the concentrate obtained after flotation is sent to the concentrator for sedimentation, then sent to the filter for dehydration, and finally sent to the dryer for drying, and finally the concentrate is obtained.

Tailings and wastewater treatment: tailings and wastewater should be specially treated before discharge to avoid environmental pollution.
